MCP Inspector

A developer tool for inspecting Model Context Protocol (MCP) servers. It ships as a single package, @modelcontextprotocol/inspector, that provides three ways to inspect a server:

• Web — a Vite + React + Mantine single-page app with a Node backend.
• CLI — a scriptable command-line client for automation, CI, and fast agent feedback loops.
• TUI — an interactive terminal UI built with Ink.

All three run through one global mcp-inspector binary:

npx @modelcontextprotocol/inspector          # web UI (default)
npx @modelcontextprotocol/inspector --cli    # CLI
npx @modelcontextprotocol/inspector --tui    # TUI

Repo status. This is the v2 line of the Inspector (branch v2/main). The main branch is the legacy v1 implementation (bug fixes only). v2 will eventually replace main. See AGENTS.md for branch/board conventions.

Project layout

v2 is not an npm workspace. Each client under clients/* keeps its own package.json and node_modules; shared code lives in core/ and is consumed via a @inspector/core build-time alias (no package.json of its own). A single npm install at the root cascades installs into every client (see Setup).

inspector/
├── clients/
│   ├── web/          # Web client (Vite + React + Mantine). src/ = browser app; server/ = Node dev/prod backend
│   ├── cli/          # CLI client (tsup bundle, @inspector/core alias)
│   ├── tui/          # TUI client (Ink + React, tsup bundle)
│   └── launcher/     # Shared launcher — provides the `mcp-inspector` bin, dispatches to web/cli/tui
├── core/             # Shared code consumed via the `@inspector/core` alias (no package.json)
│   ├── auth/         # OAuth: providers, discovery, storage, mid-session recovery (browser/node/remote backends)
│   ├── json/         # JSON + parameter/argument conversion utilities
│   ├── logging/      # Silent pino logger singleton
│   ├── mcp/          # InspectorClient runtime, state stores, transports, config import
│   ├── react/        # React hooks over the state stores
│   └── storage/      # File I/O helpers for the OAuth persist backends
├── test-servers/     # Composable MCP test servers + fixtures used by integration tests
├── scripts/          # Root build/verify tooling (install cascade, smokes, pack:verify)
├── specification/    # Design/build specifications
├── AGENTS.md         # Contribution rules for agents AND humans (see below)
└── README.md         # You are here

Each client has its own README with client-specific detail: web · cli · tui · launcher.

Setup

Requires Node >=22.19.0.

npm install     # root install; postinstall cascades into every client

• Fresh clone: run npm install at the repo root.
• After a pull that changes a client's dependencies: re-run npm install at the root to re-sync every client.

The cascade (scripts/install-clients.mjs) is dev-only — it exits early when the package is installed as a dependency, and the published tarball ships only each client's build/, so end users are unaffected. Set INSPECTOR_SKIP_CLIENT_INSTALL=1 to skip it.

Running during development

For day-to-day web iteration, run Vite directly from the web client (fast HMR, no launcher build needed):

cd clients/web && npm run dev

The launcher-driven scripts below run the built launcher, so build first (npm run build):

npm run web        # prod web launcher against clients/web/dist
npm run web:dev    # web launcher in --dev mode (Vite)

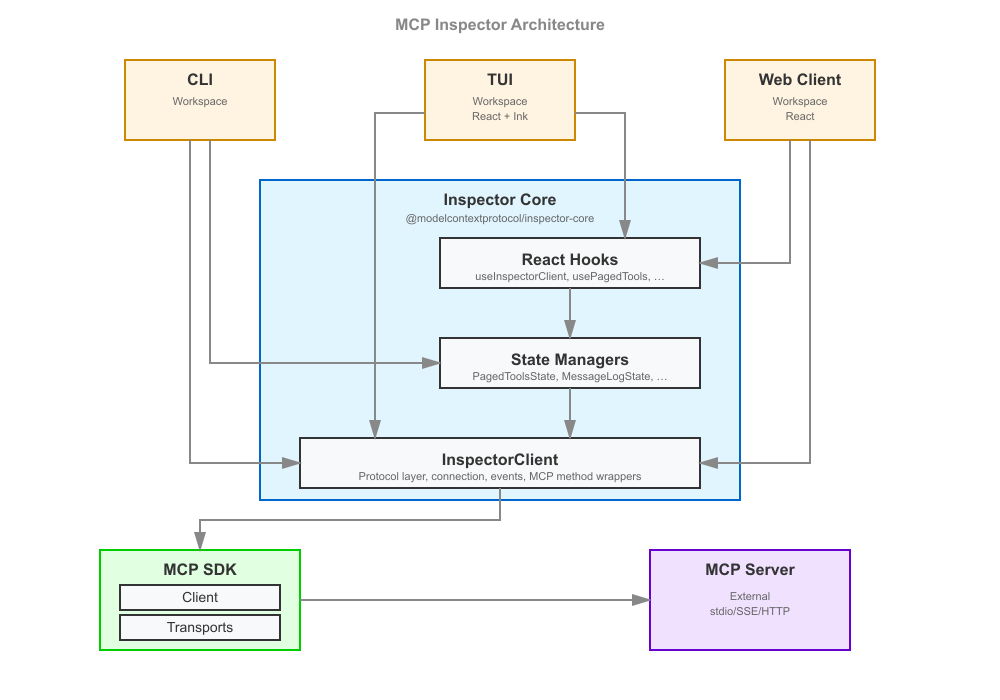

The @inspector/core shared package

core/ holds the logic shared by all three clients so that web, CLI, and TUI behave identically. Its entry point is the InspectorClient class (core/mcp/), which owns the connection to an MCP server, the request/response lifecycle, and a set of state stores; core/react/ exposes React hooks over those stores that both the web and TUI (Ink) React trees consume. OAuth (core/auth/) is factored into isomorphic logic plus browser/node/remote backends so the same flows work in the browser, in Node, and against a remote backend.

core/ intentionally has no package.json — it is not published on its own. Each client bundles it in via a @inspector/core alias:

• CLI / TUI: esbuildOptions.alias in their tsup.config.ts maps @inspector/core → the repo core/ directory, and noExternal: [/^@inspector\/core/] inlines it into the bundle.
• Web: the same alias in clients/web/vite.config.ts for the browser app and the Node backend runner.

Publishing core/ as its own package (e.g. for third parties to build on) is deliberately deferred — see issue #1636.

Web client: "dumb components" + Storybook

The v2 web client is built from presentational ("dumb") components — they accept data and callbacks as props and contain only display logic, with no direct data fetching or client state. State comes from the @inspector/core hooks, wired in near the top of the tree. This keeps components isolated, testable, and documentable.

That approach is what makes Storybook first-class here: every screen and element component has a *.stories.tsx file (96+ stories) that renders it against fixture props. Storybook play functions double as interaction tests, run headless in CI (npm run ci:storybook, Chromium via Playwright).

Styling follows a strict Mantine-first convention (theme variants and component props over CSS classes, --inspector-* CSS custom properties over raw color literals). The full rules live in AGENTS.md under React instructions — read them before touching web UI. Element components live in clients/web/src/components/elements/; theme variants in clients/web/src/theme/.

Test servers

test-servers/ provides composable MCP servers used by the integration and smoke suites, so tests exercise a real server over a real transport instead of mocks. A server is assembled from presets (fixture factories in test-servers/src/preset-registry.ts — tools, resources, prompts, tasks, elicitation, sampling, OAuth, …) and can be driven two ways:

• In-process — import the factories (createTestServerHttp, createEchoTool, …) and run the server inside the test's event loop (used by the HTTP integration paths).
• As a subprocess — test-servers/build/test-server-stdio.js is spawned as a real stdio child (used by the CLI smoke and stdio integration tests).

Configure a server declaratively with a JSON config (see test-servers/configs/*.json) selecting presets, then load it via --config. Because the servers are spawned as real subprocesses, the build output must exist first:

npm run test-servers:build   # (from clients/web) → tsc -p test-servers, emits test-servers/build/

The Vite alias @modelcontextprotocol/inspector-test-server (in clients/web/vite.config.ts) points at test-servers/build/index.js so getTestMcpServerPath() resolves to a real .js path.

Building

npm run build     # builds all clients: web → cli → tui → launcher

Individual clients: build:web, build:cli, build:tui, build:launcher. The web build produces both the browser SPA (clients/web/dist, Vite) and the Node prod-server runner (clients/web/build, tsup).

Testing & the quality gate

Each client self-validates from its own folder; the root scripts chain them. There is no aggregate root test script — use validate (fast) or coverage (the gate).

Script	What it does
npm run validate	format:check + lint + build + fast unit tests, per client. The quick inner-loop check.
npm run coverage	The per-file ≥90% gate (lines/statements/functions/branches) under v8 instrumentation, per client. CI-enforced. For web this also runs the integration project.
npm run smoke	End-to-end smokes through the built launcher (--help dispatch + prod cli/tui/web).
npm run ci	Mandatory pre-push command. validate → coverage → smoke → Storybook. A true superset of GitHub CI.
npm run pack:verify	Publish smoke — see Publishing.

Per-client scripts exist too (validate:web, coverage:cli, smoke:tui, …). Run npm run format (per client) before committing — validate runs the non-fixing format:check and fails CI on any unformatted file.

For the full testing rules — the ≥90% per-file gate, where test files live, the unit vs. integration vs. storybook projects, and the v8 ignore policy — see AGENTS.md.

Publishing

The root @modelcontextprotocol/inspector package ships as one tarball with a single version number — no separate -web / -cli / -tui / -core packages. npm run build builds every client, then prepack runs before npm publish. Runtime dependencies are declared on the root package.json; client builds bundle @inspector/core and externalize npm packages resolved from the root install.

What ships, and the packaging invariants

The root package.json "files" allowlist is the source of truth for the tarball. A few non-obvious entries exist because they are read at runtime or were silently dropped by npm's packlist — do not remove them without re-running npm run pack:verify:

• No source maps. The client bundlers set sourcemap: false (clients/{cli,tui}/tsup.config.ts, clients/web/tsup.runner.config.ts); Vite and the launcher's tsc already emit none. Maps are ~half the unpacked size and aren't needed at runtime — debug via npm run dev on the source.
• clients/web/build ships via clients/web/.npmignore. clients/web/.gitignore lists build/, and npm's packlist honors that nested .gitignore over the root "files" allowlist — so the prod web-server runner was silently missing from the tarball while clients/web/dist slipped through (its .gitignore only lists dist-ssr). clients/web/.npmignore overrides the .gitignore for publishing so both build/ (runner) and dist/ (SPA) ship. The other clients don't need this — none ship a nested .gitignore.
• A single version number, read from the root package.json. The Inspector ships as one package with one version, so only the root package.json carries a version — the four clients/*/package.jsons deliberately have none. Every Node client (CLI, TUI, and the web backend) resolves the version through the shared readInspectorVersion() reader in core/node/version.ts, which walks up to the root manifest (always present in the tarball). No client package.json is read at runtime, so none needs to ship. The web browser can't read the filesystem; it gets its version from the backend via GET /api/config (see #1639).

npm run pack:verify — publish smoke against the real tarball

The smoke:* scripts run against the in-repo build tree, which is not the published package. npm run pack:verify (scripts/pack-and-verify.mjs) closes that gap: it builds, npm packs the publishable tarball (asserting no source maps ship and that the runtime-required files are present), installs the tarball into a clean throwaway consumer — a fresh temp directory where it runs a real npm install <tgz> (pulls runtime deps, runs postinstall), exactly as npx @modelcontextprotocol/inspector would — and drives the installed mcp-inspector bin end to end: --help dispatch, a real --cli tools/list over stdio, and a prod --web boot that must serve / from the shipped dist. It catches "works in --dev, breaks under npx …" path/packaging failures. It requires network access (the install pulls deps), so it is a local / release check, not part of the fast validate/ci loop.

Cutting a release

Publishing is automated by two release-gated jobs in .github/workflows/main.yml (github.event_name == 'release', both needs: build):

• publish — the npm package. Runs npm run pack:verify as the pre-publish gate, asserts the release tag matches the root package.json version, then npm publish --access public --provenance — a single npm publish (v2 is not an npm workspace, so there is no v1-style publish-all/--workspaces), with a signed provenance attestation via GitHub OIDC (id-token: write, environment: release, NPM_TOKEN).
• publish-github-container-registry — the container image (see Docker).

Because there is one version number (only the root package.json has one — the clients carry none, so there is nothing to keep in sync and no check-version step), the release flow is just:

npm version <major|minor|patch>   # bumps the root package.json + tags
git push --follow-tags
# then draft & publish a GitHub Release for that tag → triggers `publish`

The release's target commit selects which workflow runs, so this only publishes when a release is cut from a commit carrying this (v2) workflow.

Docker

A container image is published to GHCR (ghcr.io/modelcontextprotocol/inspector, linux/amd64 + linux/arm64) by the release workflow. The Dockerfile is a two-stage build: the first stage installs and npm packs the publishable tarball; the second stage npm install -gs that tarball, so the image ships the exact same artifact as npm, with a clean mcp-inspector bin.

# run the web UI (reads the auth token from the container logs)
docker run --rm -p 6274:6274 ghcr.io/modelcontextprotocol/inspector

# or build the image locally
docker build -t mcp-inspector .
docker run --rm -p 6274:6274 mcp-inspector

The image defaults to --web bound to 0.0.0.0:6274 with browser auto-open disabled; override the args to run another mode (docker run --rm ghcr.io/modelcontextprotocol/inspector --cli …). Pass -e MCP_INSPECTOR_API_TOKEN=… to set a known token (otherwise one is generated and printed in the logs), or -e DANGEROUSLY_OMIT_AUTH=true to disable auth.

Contributing — AGENTS.md and CLAUDE.md

AGENTS.md is the contract for changing this codebase, and it applies to humans and AI agents alike. It is not agent-only boilerplate — it holds the project's real conventions: the issue-and-board workflow, branch/label rules, the TypeScript and Mantine/React standards, the testing and coverage requirements, and the mandatory pre-push gate. Read it before making changes, and keep it up to date when you change structure, tooling, or rules.

CLAUDE.md is the entry point the Claude Code agent loads automatically; it simply includes AGENTS.md and this README, so both agents and humans work from the same source of truth. If you use a different agent that reads AGENTS.md, you get the same rules.

A key rule worth surfacing here: all work is issue-driven. Before starting, find or create a tracking issue on the v2 project board; open PRs against v2/main with Closes #<issue>. The exact recipes (labels, board IDs, statuses) are in AGENTS.md.

License

MIT.
