Zappier — Step-by-Step Usage Walkthrough

Version: 0.1.0 · Last updated: 2026-07-27

A full guided tour: from starting the server to pricing changes, customer creation, and live API calls. Every step shows the real screen you should see. Companion documents: USER-MANUAL.md · DEVELOPER.md.

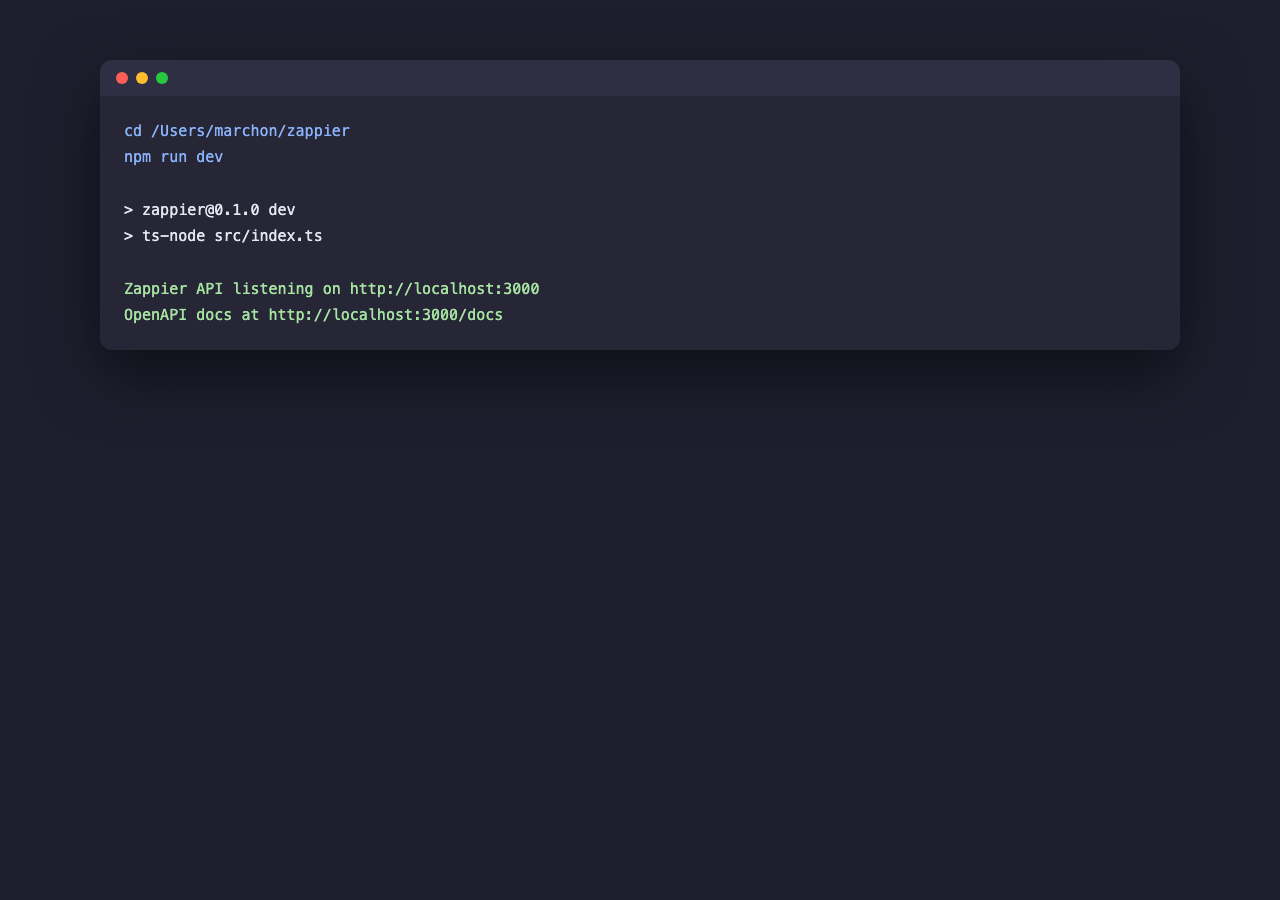

Step 1 — Start the server

cd /Users/marchon/zappier
npm install   # first time only
npm run dev

Wait for the two "listening" lines:

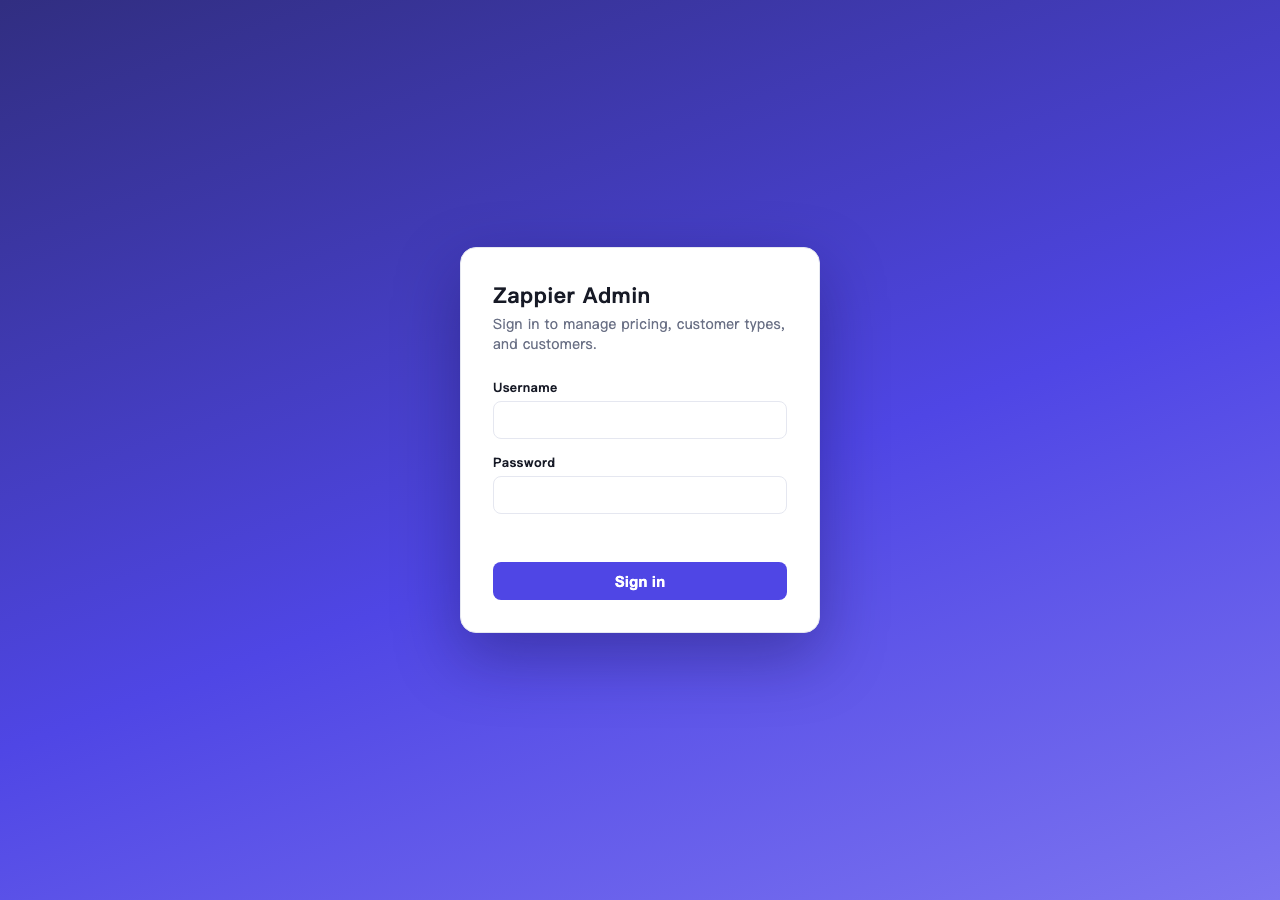

Go to http://localhost:3000/admin. You'll see the sign-in screen:

Two accounts are available:

Username	Password	Purpose
`admin`	the `ADMIN_KEY` env value (default `admin-dev-key`)	Primary operator
`demo`	`$$$Adm1n###`	Demo / stakeholder access

Override either credential with the ADMIN_USER, ADMIN_KEY, DEMO_ADMIN_USER, and DEMO_ADMIN_PASSWORD environment variables.

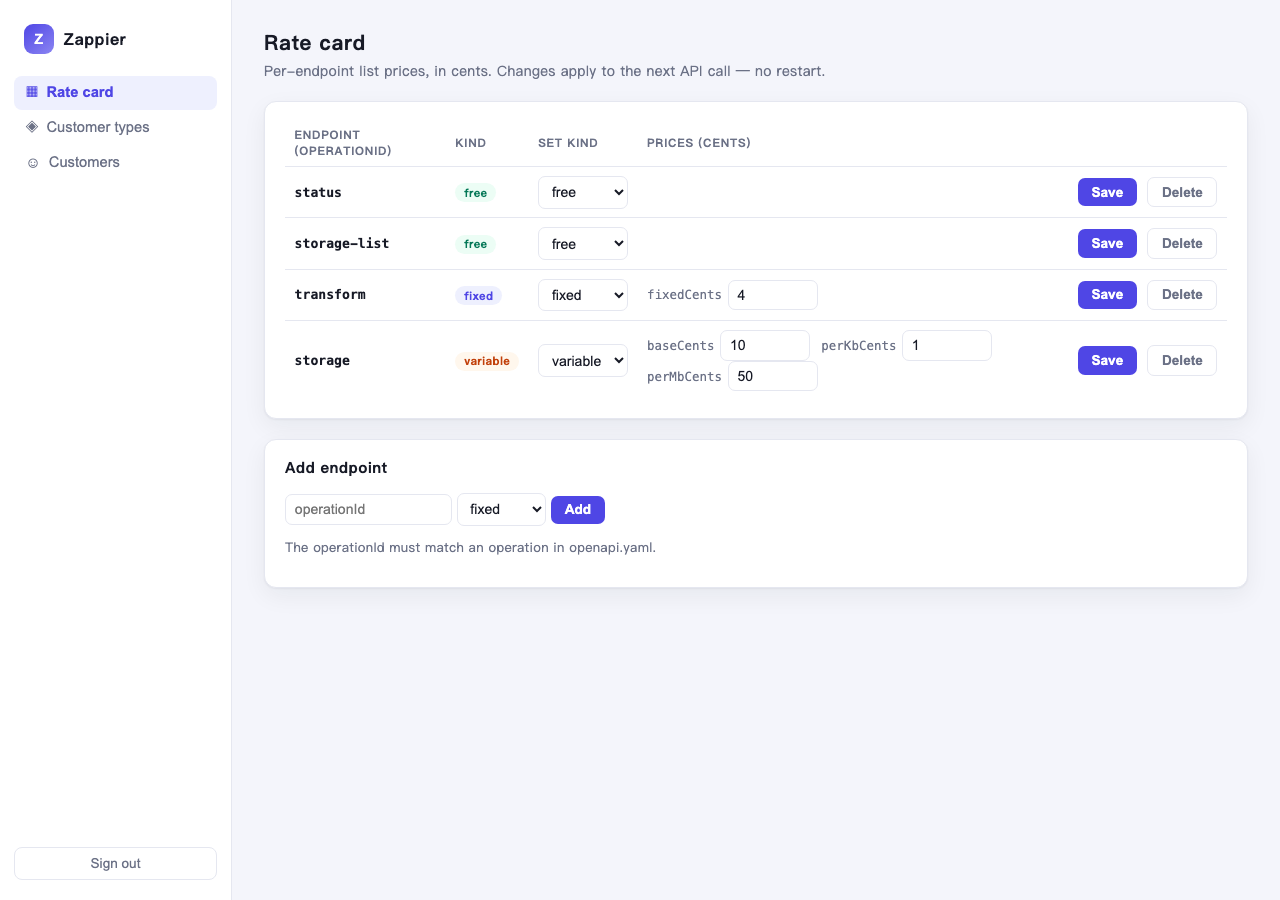

Step 3 — The rate card

After sign-in you land on the Rate card — one row per API endpoint with its price in cents:

status, storage-list — free
transform — fixed price per call
storage — variable: base + per-KB metadata + per-MB attachments

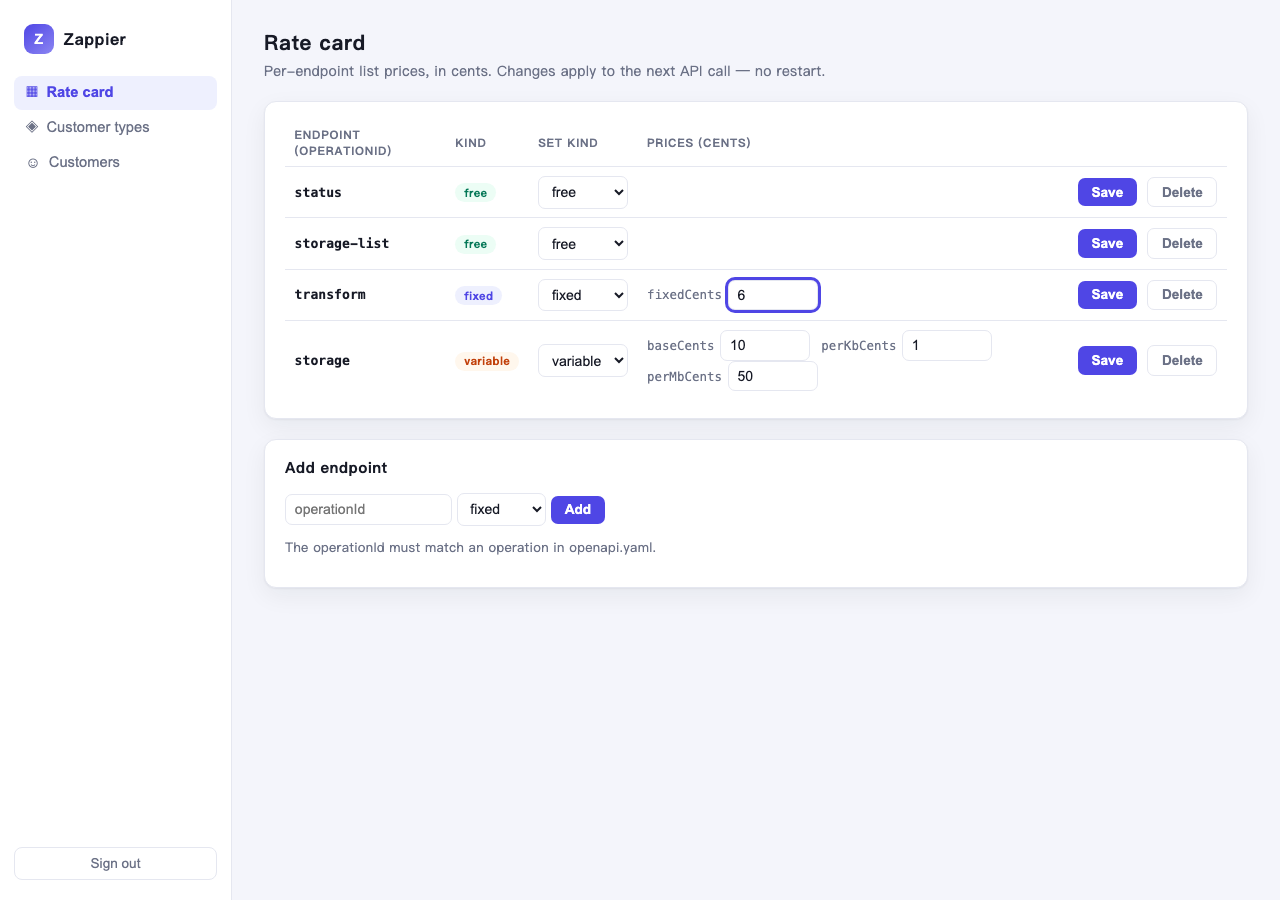

Step 4 — Change a price

Edit any cent field — here transform is changed from 4¢ to 6¢ — and click Save. The change is live on the very next API call; no restart, no deploy.

After saving, the table re-reads from the server and shows the new value:

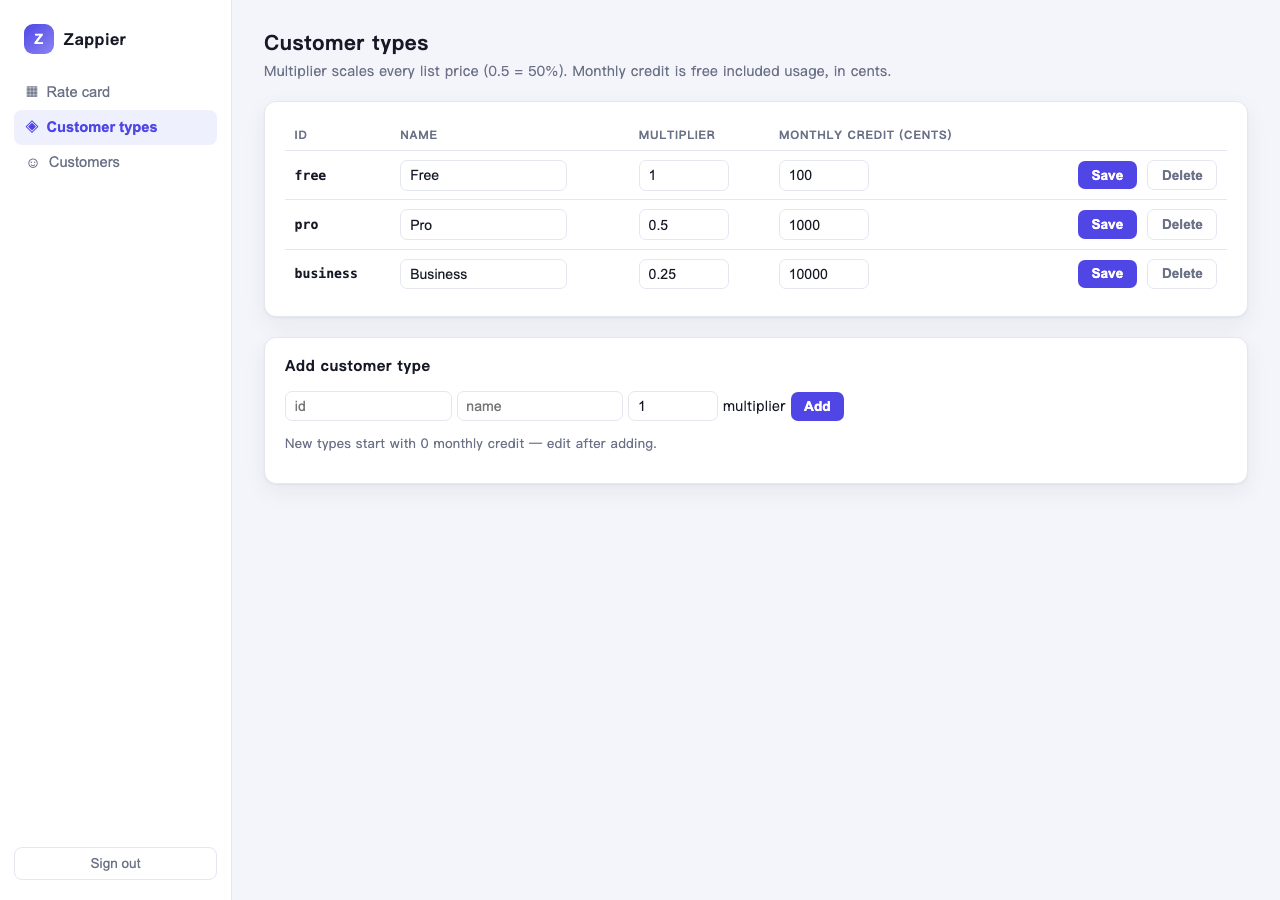

Step 5 — Customer types

Click Customer types in the sidebar. Each type is a pricing tier: a multiplier applied to every list price and a monthly credit of free included usage (cents).

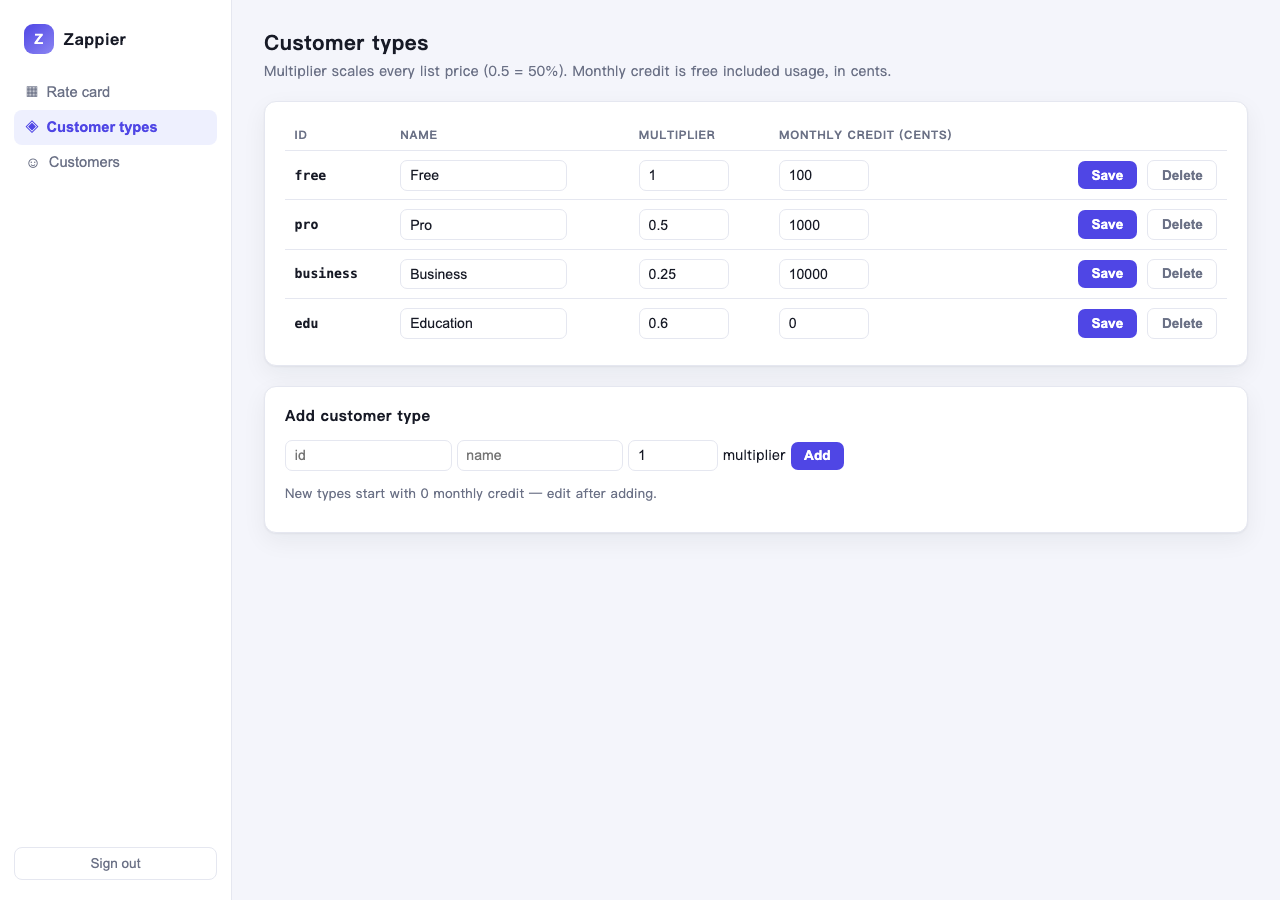

Step 6 — Add a customer type

Fill the Add customer type form — here edu / Education / ×0.6 — and click Add. The new type appears immediately and can be assigned to customers.

New types start with 0 monthly credit — edit the row and Save to grant one.

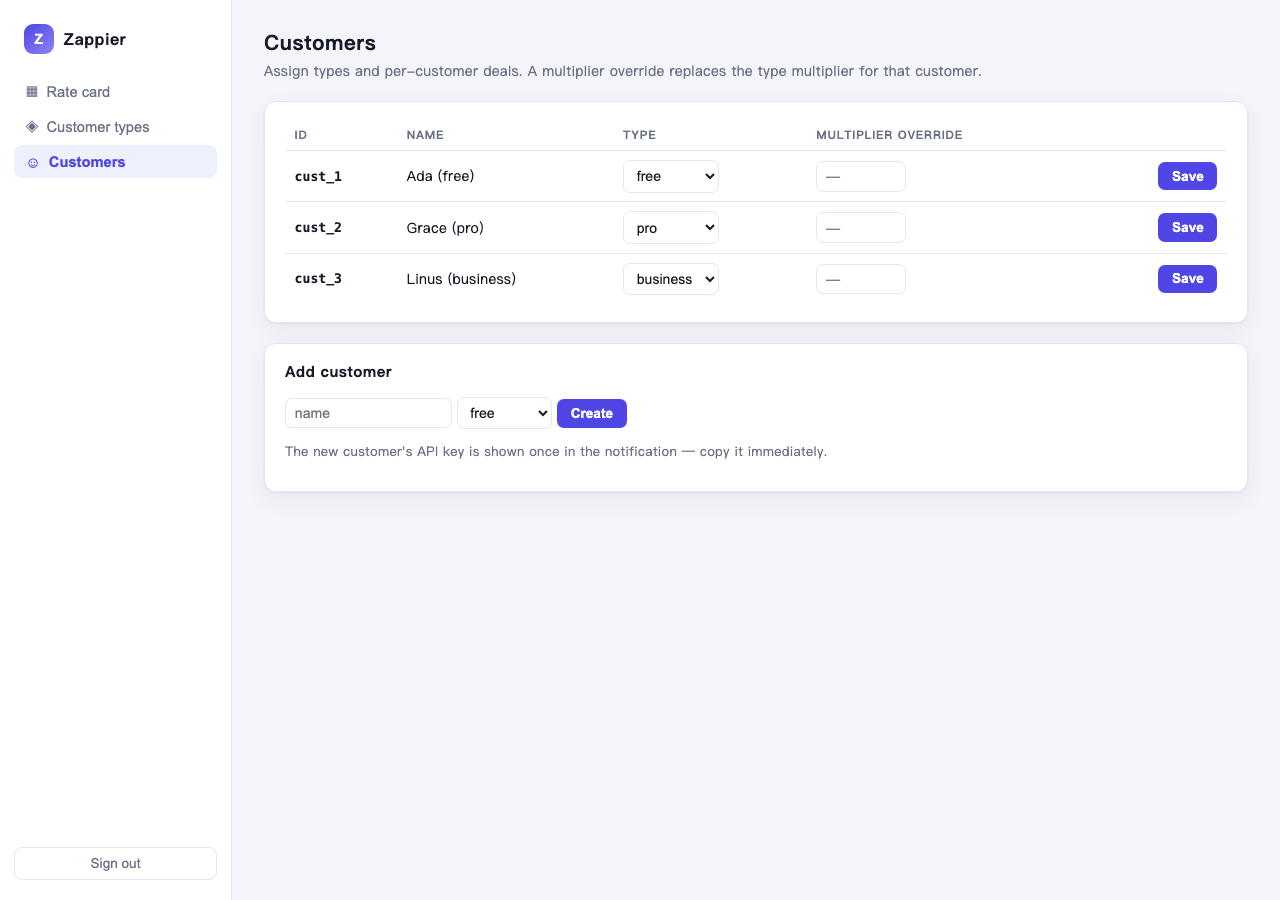

Step 7 — Customers

Click Customers in the sidebar. This is where accounts live: their type, and an optional multiplier override for per-customer deals (blank = inherit from type).

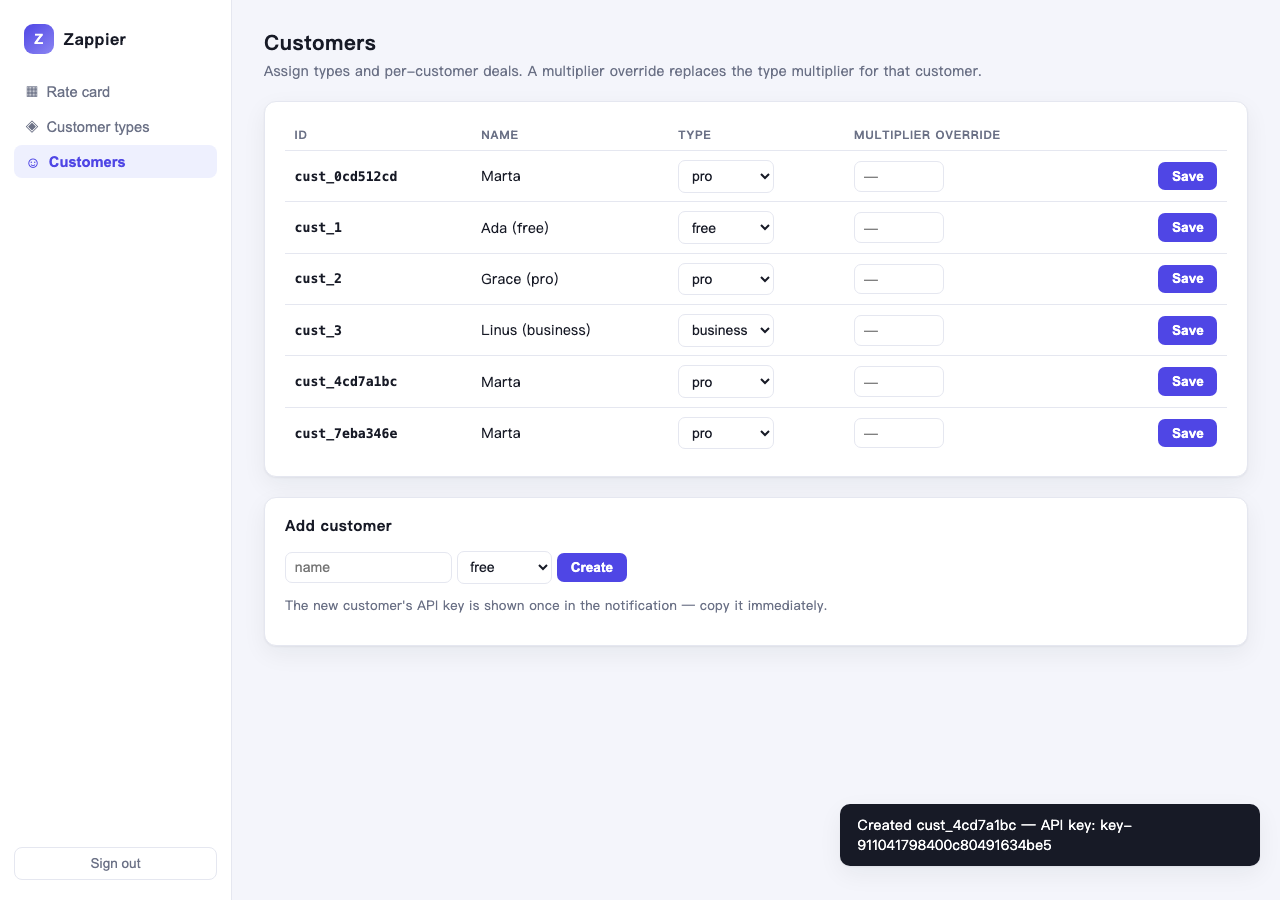

Step 8 — Create a customer and copy the API key

Enter a name, pick a type, click Create. The API key appears once in the notification at the bottom-right — copy it and send it to the customer; it is never shown again.

The new customer appears in the table right away:

Step 9 — Explore the interactive API docs

Open http://localhost:3000/docs — full Swagger docs with a "Try it out" console. Click Authorize and paste a customer API key to make live calls from the browser.

Step 10 — Make an API call

Call the API with a customer key. Every priced response includes its quote, so the cost of every call is transparent:

Note how the quote reflects the walkthrough itself: the 6¢ price set in step 4, halved to 3¢ by Grace's Pro multiplier.

Step 11 — Check usage and credits

Customers can check their own month-to-date usage anytime:

includedCents is covered by the type's monthly credit; billableCents is what the daily billing job would report to Stripe right now.

Where to go next

Daily billing runs automatically at 06:17 ET — see USER-MANUAL.md §6 for the Stripe meter/product/price setup and how to verify a run.
Troubleshooting: USER-MANUAL.md §9.
Internals: DEVELOPER.md.
