Progress report · 2026-09-12 · run 20260912T045131Z (UTC)

This is the full write-up of the test-environment NATS cluster bench: what was measured, how, the numbers, the charts, and what they mean for Verae Time × Zapier. Short tables also live in verae-nats-cluster/BENCH.md. Raw logs and CSVs are in that repo under results/20260912T045131Z/.

---

1. Executive summary

The test cluster is three JetStream nodes on private vmbr1 (LXC 511–513). The bench client is a fourth guest (LXC 510), so the numbers are cluster-plus-network, not a process talking to itself on loopback.

Two different systems were measured, on purpose:

System	What it is	What we got
Core NATS	Fire-and-forget pub/sub. No disk, no replica ack.	About 0.75–2.0 million msgs/s at 128 B, depending on fan-out. At 1 KiB, about 630k msgs/s and ~616 MB/s aggregate.
JetStream file, replicas=3	Durable, replicated — this is what product streams use.	About 16k durable 128 B pubs/s, about 13.5k at 1 KiB. Pull consume keeps up with publish at ~11k msgs/s each side.
Ping delay	One message at a time, publish then wait.	avg 0.307 ms, p99 0.734 ms, max 2.76 ms (1k × 128 B).
Flood delay	Publishers dump a batch; subscriber drains.	150–505 ms. That is queueing under burst, not wire time.

For this product: timestamp jobs, job events, webhooks, and archive puts go through JetStream r=3. Plan capacity against ~16k durable msgs/s on this stand, not the million-msg core numbers. A quiet job-event hop is a fraction of a millisecond. If a mailbox falls behind, delay jumps into hundreds of milliseconds — that is the flood column.

Core NATS is still useful: it is the ceiling for non-durable fan-out on this host, and it shows vmbr1 and the nats-server processes are not the JetStream bottleneck. JetStream is.

---

2. Why this test exists

The lab cut the test environment over to the three-node cluster. Before treating that cluster as the message fabric for keep, fleet, middleware, billing, and archive workers, we needed:

1. Throughput at several loads — one publisher vs many, 128 B vs 1 KiB, core vs durable.
2. Delay characteristics — both the quiet path (one message RTT) and the overloaded path (burst into a mailbox).
3. A client that is not a nats- server* — otherwise we would be measuring loopback on the broker.

This is a lab stand on one Proxmox host, not three metal boxes. It answers “is this cluster in the right order of magnitude for our traffic?” It does not replace a soak test on dedicated disks.

---

3. Topology

                    vmbr1  10.10.10.0/24  (not on vmbr0, not public)
                    -----------------------------------------------
  LXC 510           LXC 511            LXC 512            LXC 513
  verae-px-worker   nats-a             nats-b             nats-c
  10.10.10.20       10.10.10.21        10.10.10.22        10.10.10.23
  bench client      :4222 client       :4222              :4222
                    :6222 routes       :6222              :6222
                    :8222 loopback     :8222              :8222

• Cluster name: verae. Each server has two routes to the other two.
• Client URL: nats://10.10.10.21:4222,nats://10.10.10.22:4222,nats://10.10.10.23:4222
• HTTP monitor is loopback :8222 inside each guest. Zapier cloud never talks to NATS.
• Product streams already on this cluster (ZAPIER_JOBS, ZAPIER_EVENTS, ZAPIER_WEBHOOKS, ZAPIER_USAGE, VERAE_ARCHIVE) use file storage and replicas=3. The JetStream bench used the same settings on a throwaway stream benchstream.
• Host 127.0.0.1:4222 is still listening on NS1; clients no longer use it.

Credits for the stack: Scott Lindsey, George Lambert, NATS.IO, Grok-Code.

---

4. Method

4.1 Tools

Piece	Role
nats CLI 0.1.6	Throughput (nats bench --no-progress --csv). Its min/avg/max are publisher rate spread, not delay.
scripts/latency.mjs	Two connections, header timestamp t, delay = receive time − send time.
scripts/bench.sh	Runs the ladder from NS1 via pct exec on VMID 510.
scripts/bench-report.py	Turns logs into the short BENCH.md table.

Re-run on NS1, from verae-nats-cluster:

bash scripts/bench.sh

4.2 Load ladder

Core NATS (subject bench.core.*):

Run	Publishers	Subscribers	Messages	Payload
core-1p1s-50k-128	1	1	50,000	128 B
core-4p4s-100k-128	4	4	100,000	128 B
core-8p8s-200k-128	8	8	200,000	128 B
core-4p4s-50k-1k	4	4	50,000	1024 B

JetStream (--js --storage file --replicas 3 --stream benchstream). The stream is deleted between loads so the name never collides:

Run	Shape	Messages	Payload
js-1p-20k-128-r3	1 publisher	20,000	128 B
js-4p-50k-128-r3	4 publishers	50,000	128 B
js-4p-20k-1k-r3	4 publishers	20,000	1024 B
js-2p2s-20k-128-r3	2 pub + 2 pull sub	20,000	128 B

Delay (core subjects, two connections):

Run	Mode	Count	Pubs	Payload
lat-ping-1k-128	ping — publish, wait for that message, repeat	1,000	1	128 B
lat-1p-5k-128	flood — publish all, then drain	5,000	1	128 B
lat-4p-10k-128	flood	10,000	4	128 B
lat-8p-20k-128	flood	20,000	8	128 B
lat-4p-5k-1k	flood	5,000	4	1024 B

Ping answers “how long does one quiet hop take?” Flood answers “what happens to the last message if we burst N messages into a mailbox?” Those are different questions. Mixing them is how 0.3 ms and 400 ms get confused.

4.3 How to read nats bench columns

• Pub msgs/s — rate at which publishers finished their share.
• Sub msgs/s — rate at which subscribers finished. With several subscribers on the same subject, core NATS fans out, so sub rate can exceed pub rate.
• Aggregate msgs/s — nats CLI NATS Pub/Sub stats line (pub+sub work in one number). Useful as a headline; do not treat it as “the network carried this many unique messages.”
• Empty JetStream sub cells mean that run was publish-only (durable write, no consumer in the same process).

---

5. Throughput results

5.1 Core NATS

Run	Aggregate msgs/s	Pub msgs/s	Pub MB/s	Sub msgs/s	Sub MB/s
core-1p1s-50k-128	1,200,836	791,094	96.57	747,461	91.24
core-4p4s-100k-128	1,521,256	316,312	38.61	1,299,634	158.65
core-8p8s-200k-128	2,007,937	333,957	40.77	1,790,736	218.60
core-4p4s-50k-1k	630,460	247,747	241.94	510,216	498.26

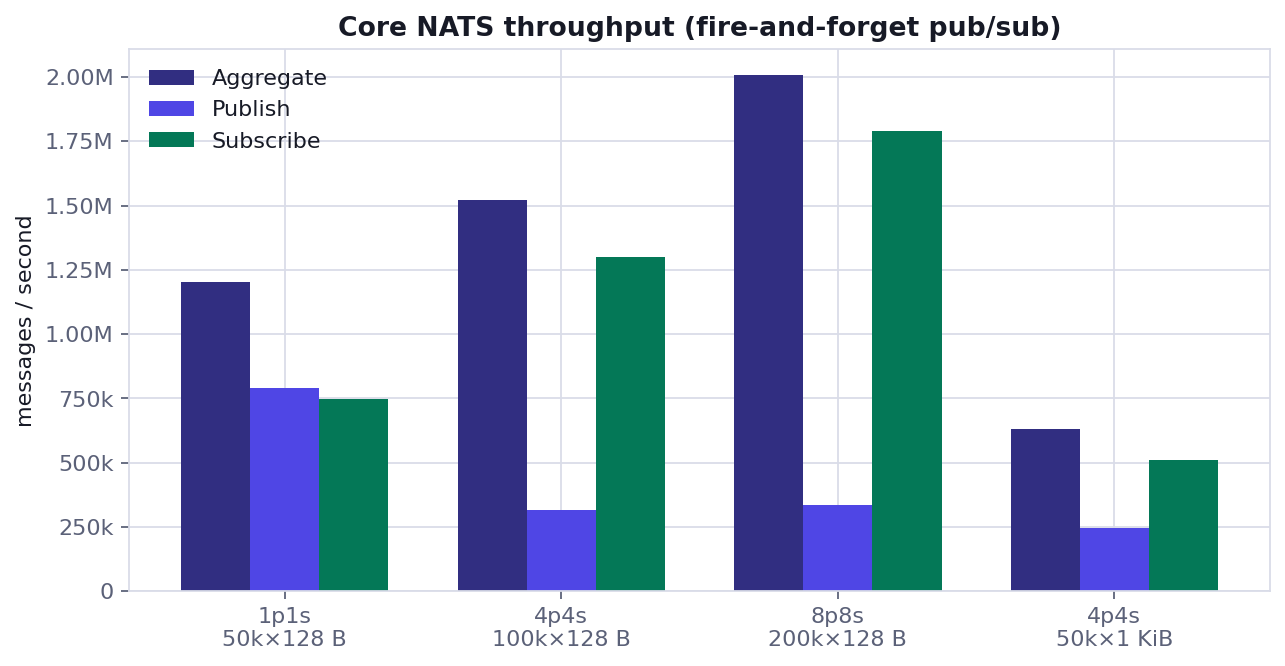

What this chart is saying. Adding subscribers raises aggregate and sub rates because each published message is delivered to every subscriber. Publish rate does not climb the same way: 1 publisher at 128 B already pushes ~791k msgs/s; 4 and 8 publishers sit around 310–335k msgs/s each process slower, while fan-out on the sub side goes to 1.3M then 1.8M.

That publisher slowdown is expected on this stand. The four/eight publisher processes and the four/eight subscribers all run inside one LXC (510) against three broker LXCs on the same Proxmox CPU and vmbr1. Per-publisher logs show a wide spread (example, 4p core 128 B: 79k–524k msgs/s among the four pubs). That is CPU scheduling and client-side contention, not a NATS cluster that only has one fast node.

1:1 at 128 B is the cleanest core number: ~791k pub, ~747k sub, ~1.20M aggregate. The cluster and the bridge can move three-quarter-million small messages per second fire-and-forget from a single client pair.

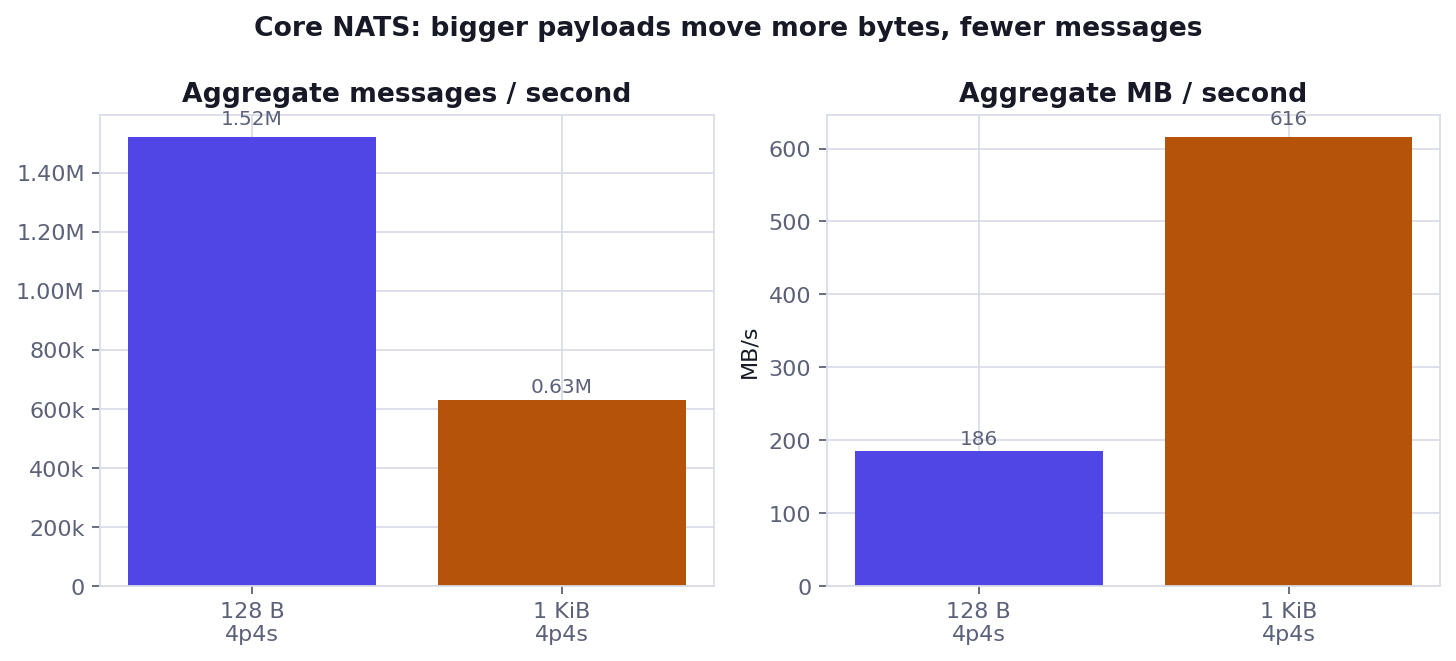

5.2 Payload size (core)

Same 4p4s shape, two sizes:

Payload	Aggregate msgs/s	Aggregate MB/s	Pub msgs/s	Sub msgs/s
128 B	1,521,256	185.70	316,312	1,299,634
1 KiB	630,460	615.68	247,747	510,216

Message rate falls; byte rate rises (186 MB/s → 616 MB/s aggregate). We are leaving the “tiny message, CPU/syscall bound” region and entering “copying bytes across vmbr1.” Job JSON and archive metadata sit nearer 128 B–1 KiB than megabyte blobs (blobs are HTTP/WORM, not NATS payloads).

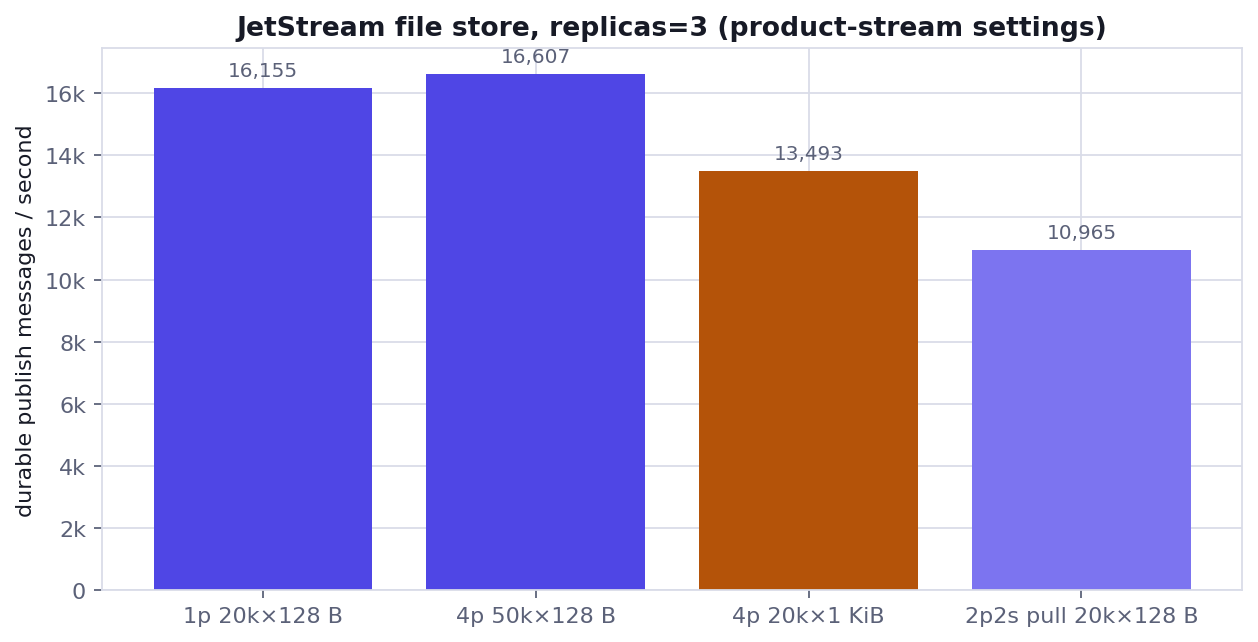

5.3 JetStream r=3 file

Run	Pub msgs/s	Pub MB/s	Sub msgs/s	Notes
js-1p-20k-128-r3	16,155	1.97	—	publish-only
js-4p-50k-128-r3	16,607	2.03	—	four pubs, same ceiling
js-4p-20k-1k-r3	13,493	13.18	—	1 KiB still disk/replica bound
js-2p2s-20k-128-r3	10,965	1.34	10,942	pull consumers keep up

Four publishers do not make JetStream four times faster. 1p and 4p at 128 B are both ~16k msgs/s. The limiter is synchronous replication to three file-backed replicas, not client parallelism. That is the result we wanted to see: the bench stream is behaving like a replicated log, not like core fan-out.

Pull consume (js-2p2s) is slightly slower on publish (~11k) because the same run is also reading. Pub and sub stay matched (10,965 vs 10,942): the consumer is not the straggler.

1 KiB durable write is ~13.5k msgs/s (~13.2 MB/s). Bytes go up; message rate dips only a little. JetStream here is ack/fdatasync/replica bound, not payload-copy bound, in this size range.

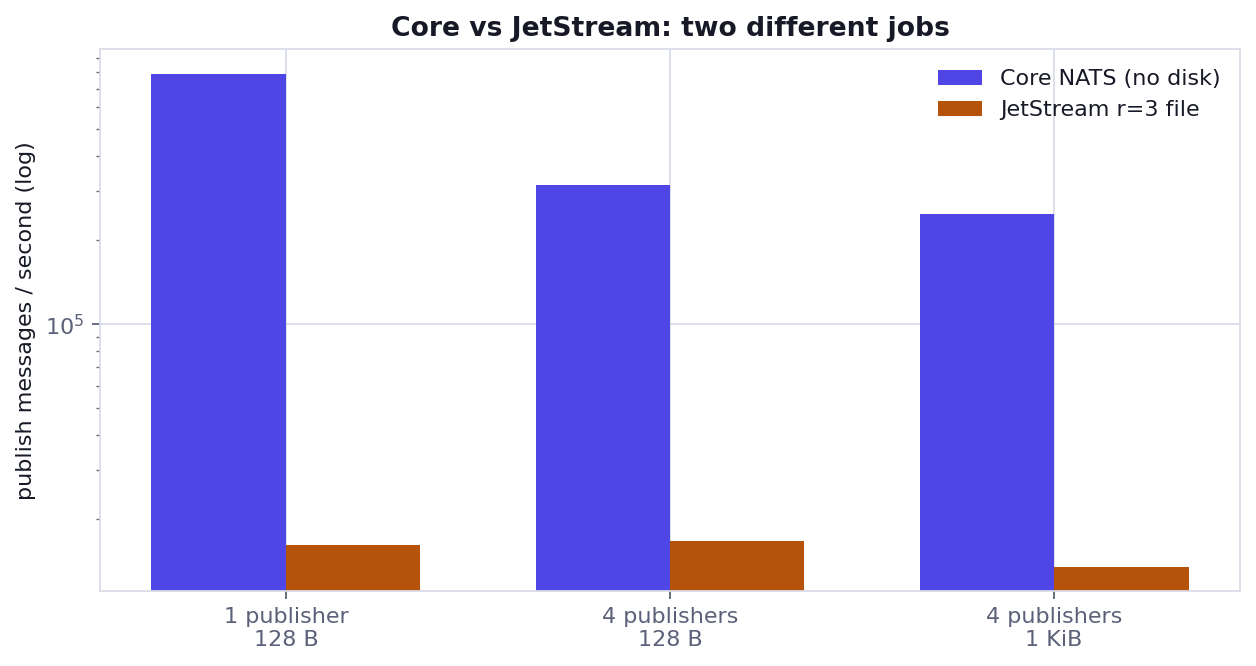

5.4 Core vs JetStream (same client, same cluster)

The log scale is required: core publish is ~15–50× JetStream publish on this stand.

Shape	Core pub msgs/s	JS r=3 file pub msgs/s	Ratio
1 publisher, 128 B	791,094	16,155	~49×
4 publishers, 128 B	316,312	16,607	~19×
4 publishers, 1 KiB	247,747	13,493	~18×

This is not JetStream “losing.” Core is allowed to forget a message the instant the server accepts it. JetStream on file with replicas=3 must record it on a majority before the publish acks. Our product streams (ZAPIER_*, VERAE_ARCHIVE) chose that trade on purpose: a job event that survives one LXC dying is worth ~16k msgs/s instead of ~800k.

If we ever need core-like rates for a signal that may drop, that signal should not be on a replicated file stream.

---

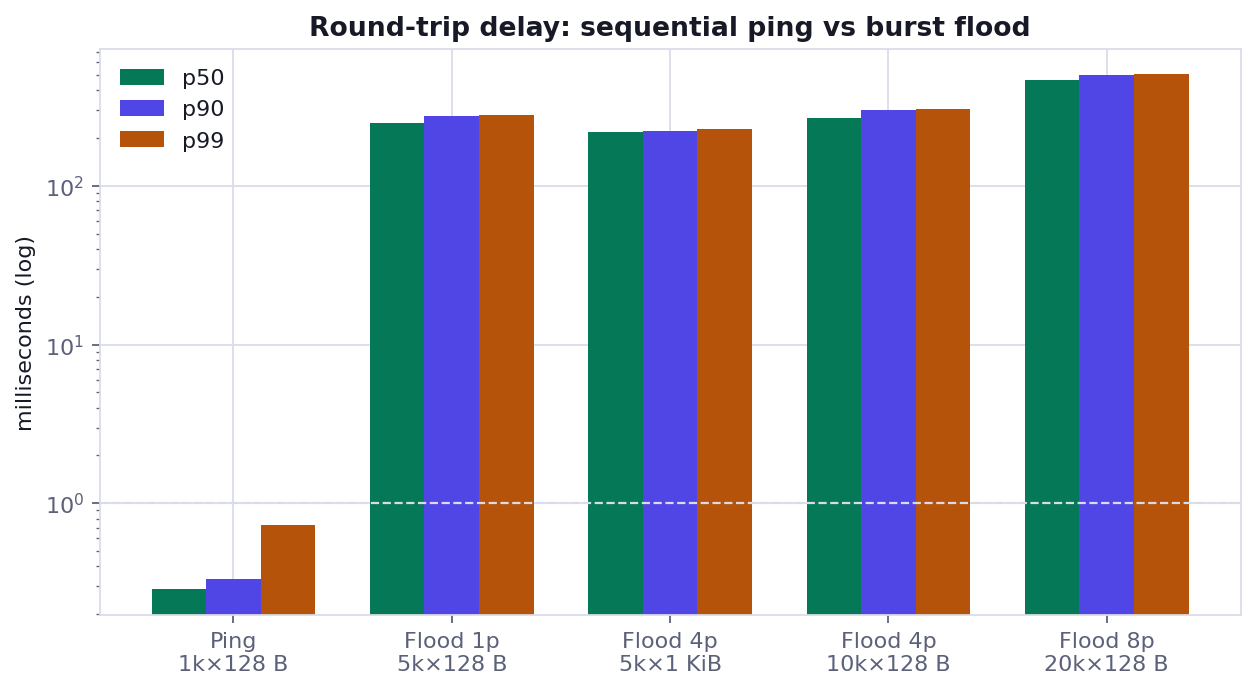

6. Delay results

Run	Kind	Count	min	avg	p50	p90	p99	max
lat-ping-1k-128	ping (sequential RTT)	1000	0.254 ms	0.307 ms	0.286 ms	0.332 ms	0.734 ms	2.763 ms
lat-1p-5k-128	flood	5000	149.3 ms	238.6 ms	248.8 ms	274.3 ms	279.4 ms	279.7 ms
lat-4p-5k-1k	flood	5000	155.1 ms	211.7 ms	217.6 ms	223.3 ms	227.8 ms	228.4 ms
lat-4p-10k-128	flood	10000	174.2 ms	263.2 ms	266.7 ms	299.1 ms	304.2 ms	304.5 ms
lat-8p-20k-128	flood	20000	304.6 ms	453.7 ms	466.3 ms	499.9 ms	505.1 ms	505.6 ms

The dashed line on the chart is 1 ms. Only ping lives there.

6.1 Ping — the quiet hop

One publisher, one subscriber, two connections, wait for each message before sending the next.

• min 0.254 ms — guest → vmbr1 → a nats-server → vmbr1 → guest.
• p50 0.286 ms / avg 0.307 ms — typical.
• p99 0.734 ms — still under a millisecond.
• max 2.763 ms — one outlier in 1,000 samples (GC, scheduler, or a slow route). Not the tail we design for.

A middleware jobs.watch publish followed by a waiter on jobs.events is this shape when the poller is keeping up. Compared with HTTPS to Zapier (tens to hundreds of milliseconds) or a live Verae GET /api/status/{jobId}, NATS RTT is noise.

6.2 Flood — queueing under burst

Publishers write the whole batch as fast as they can, then the subscriber drains. Each message’s delay is “how long was I in the buffer before the subscriber got to me?”

That is why:

• min is already ~150–300 ms — even the first messages wait behind a burst that filled the socket/client queue.
• p50 ≈ p99 ≈ max — a queue drain has a tight distribution: everyone waits for roughly the same backlog.
• 8p × 20k is ~450 ms avg — twice the messages of 4p × 10k, roughly twice the wait. Linear in backlog, not in cluster diameter.

Flood is not a measurement of NATS being slow. The ping column proves the hop is ~0.3 ms. Flood is a measurement of what operators will see if a consumer stalls (job-events mailbox, webhook deliver, archive reply). Backlog time ≈ queued_messages / consume_rate.

6.3 1 KiB flood vs 128 B flood

4 publishers, 5k messages at 1 KiB: avg 212 ms, slightly faster than 4p 10k × 128 B (263 ms) because the count is half, even though each message is 8× larger. Again: delay here tracks how many messages are queued, not payload size, in this range.

---

7. What this means for Verae × Zapier

Product subjects on this cluster:

Address	Kind	Bench analogue
verae.zapier.jobs.watch	work queue (JetStream)	JS durable pub ~16k/s
verae.zapier.jobs.events	events	JS + ping if waiters keep up; flood if they do not
verae.zapier.webhooks.deliver	work queue	JS durable
verae.zapier.usage	optional	JS durable
verae.billing.*	request-reply	ping (quiet RTT)
verae.archive.put / query / reply.*	JetStream + broadcast query	JS durable; query fan-out is closer to core but still JS-backed puts

Capacity. 16k durable 128 B pubs/s is ~1.4×10⁹ messages/day if you could fill the pipe. We will not. Zapier HTTPS, live api.veraetime.net, WORM bloom checks, and human Zap runs sit far below that. This cluster is not the product bottleneck on NS1.

Latency budget. A timestamp wait is: HTTP in → NATS watch → poll Verae → NATS event → HTTP out (or REST Hook). The NATS pieces are sub-millisecond when caught up. Do not spend time “optimizing NATS RTT” until Zapier/Verae HTTP is in the same band.

Backlogs. The failure mode that does show up in these numbers is flood delay. If webhook-deliver or job-events consumers pause (keep stopped, replica floor, a blocked HTTPS post to hooks.zapier.com), waiters will see hundreds of milliseconds to seconds of queue time. Fleet replica floors and keep exist to prevent that, not because 0.3 ms is too slow.

Hardware move. Same three configs, three boxes, private NIC. Expect:

• Core numbers to change with NIC and CPU (maybe up, maybe down).
• JetStream numbers to change more, because they are disk + fsync + replica RTT. Distinct SSDs should help; a slow shared datastore would hurt.
• Ping RTT to grow by whatever the real NIC and switch add (still likely low milliseconds on a LAN).

---

8. Limits of this measurement

1. One Proxmox host. LXC 510–513 share cores, memory, and the host’s disk. Replica=3 on file is three files on the same underlying storage, not three failure domains. HA of “one disk dies” is not proven. HA of “one LXC process dies” is the actual claim.
2. Short runs. Tens of thousands of messages, seconds of wall time. No compaction, no multi-hour page-cache eviction, no snapshot/restore during load.
3. No TLS, no nkeys. verae-nats-accounts is still a sketch. Auth would add CPU; it would not turn 16k into 800k.
4. One bench client. All publishers live in 510. A fleet of workers on several CTs might publish more into JetStream until disk/replicas saturate — the 1p vs 4p JS result says that saturation is already ~16k from one CT.
5. nats 0.1.6 does not report delay. Anyone reading min | avg | max msgs on a bench log as microseconds will get the wrong story. Delay is only latency.mjs.
6. Core aggregate ≠ unique messages. Fan-out double-counts. Use pub or sub columns when comparing to JetStream.
7. Not a Zapier or Verae API bench. Those are still blocked on operator login / live credentials.

---

9. How to reproduce

On NS1 (Proxmox), from the verae-nats-cluster checkout:

bash scripts/status.sh    # 3/3 JetStream
bash scripts/bench.sh     # writes results/<utc>/ and BENCH.md

The client VMID defaults to 510. Override with CLIENT_VMID=…. NATS_URL comes from client.env.

Rebuild this progress report (charts + HTML + PDF) from the monorepo:

python3 packages/zapier-decisions/scripts/build-nats-bench-report.py

---

10. Appendix — environment and files

Item	Value
Run stamp	20260912T045131Z
Client	LXC 510 verae-px-worker 10.10.10.20
Servers	511/512/513 nats-a/b/c 10.10.10.21–23
nats CLI	0.1.6 linux-amd64
JS storage	file, replicas=3, stream benchstream (deleted between loads)
Isolation	vmbr1 only; no 0.0.0.0 client bind
Short tables	BENCH.md
Raw logs	packages/verae-nats-cluster/results/20260912T045131Z/
This report	packages/zapier-decisions/reports/nats-cluster-bench.{md,html,pdf}

Publisher rate spread (nats CLI, msgs/s, not delay):

Run	min	avg	max
core-4p4s-100k-128 pub	79,260	257,805	524,453
core-8p8s-200k-128 pub	41,744	71,488	152,536
core-4p4s-50k-1k pub	61,936	110,271	176,262
js-4p-50k-128-r3 pub	4,154	5,176	6,628
js-4p-20k-1k-r3 pub	3,373	4,063	5,121
js-2p2s-20k-128-r3 pub	5,485	7,081	8,678

Wide core spreads are the single-client-CT effect described in §5.1. JetStream spreads are narrow and low — every publisher is waiting on the same replicated write path.
