Zappier — Step-by-Step Usage Walkthrough

Version: 0.1.0 · Last updated: 2026-07-27

A full guided tour: from starting the server to pricing changes, customer creation, and live API calls. Every step shows the real screen you should see. Companion documents: USER-MANUAL.md · DEVELOPER.md.

Step 1 — Start the server

cd /Users/marchon/zappier
npm install   # first time only
npm run dev

Wait for the two "listening" lines:

Start the server

Step 2 — Open the admin UI and sign in

Go to http://localhost:3000/admin. You'll see the sign-in screen:

Sign in

Two accounts are available:

Username Password Purpose
admin the ADMIN_KEY env value (default admin-dev-key) Primary operator
demo $$$Adm1n### Demo / stakeholder access

Override either credential with the ADMIN_USER, ADMIN_KEY, DEMO_ADMIN_USER, and DEMO_ADMIN_PASSWORD environment variables.

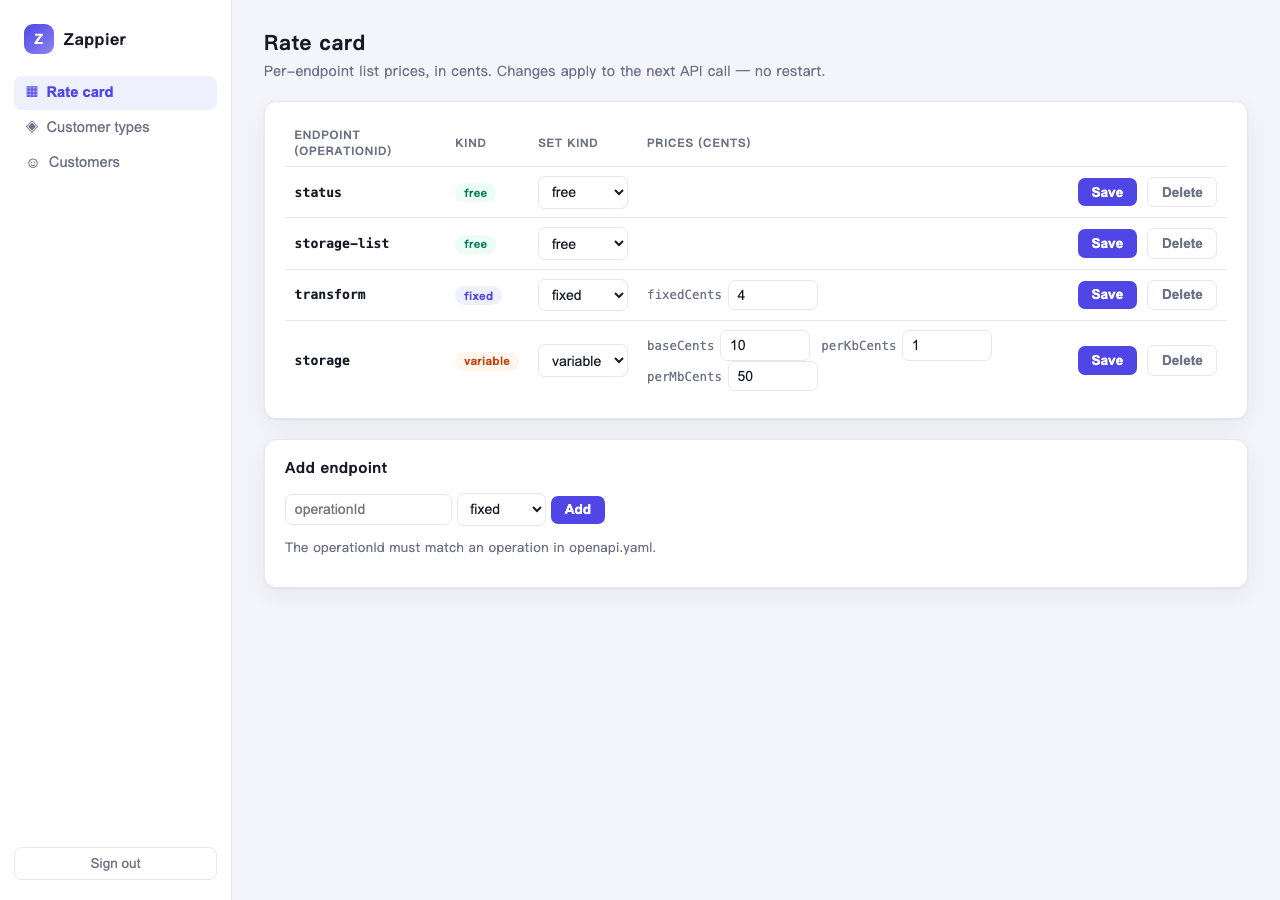

Step 3 — The rate card

After sign-in you land on the Rate card — one row per API endpoint with its price in cents:

Rate card

  • status, storage-list — free
  • transform — fixed price per call
  • storage — variable: base + per-KB metadata + per-MB attachments

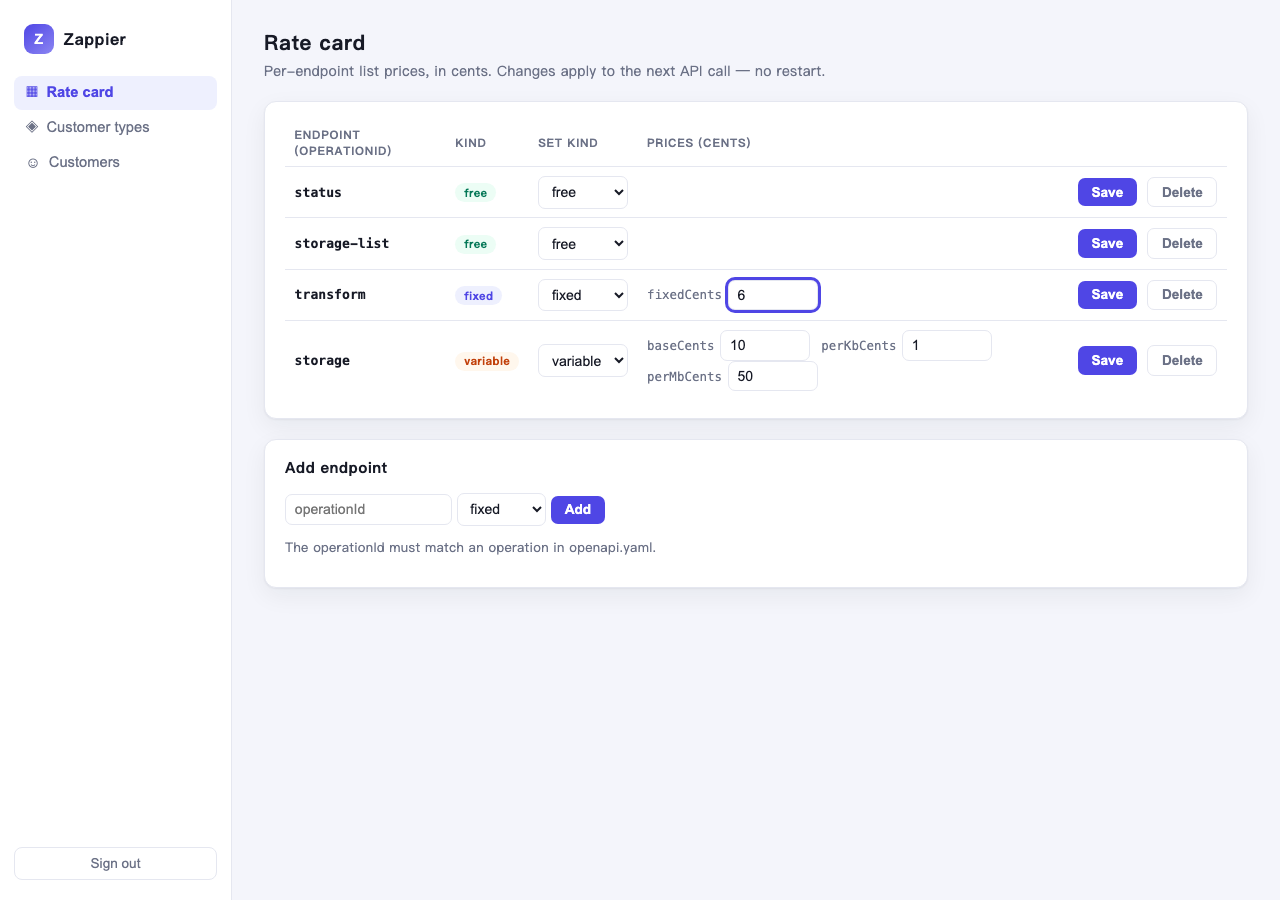

Step 4 — Change a price

Edit any cent field — here transform is changed from 4¢ to 6¢ — and click Save. The change is live on the very next API call; no restart, no deploy.

Edit a price

After saving, the table re-reads from the server and shows the new value:

Price saved

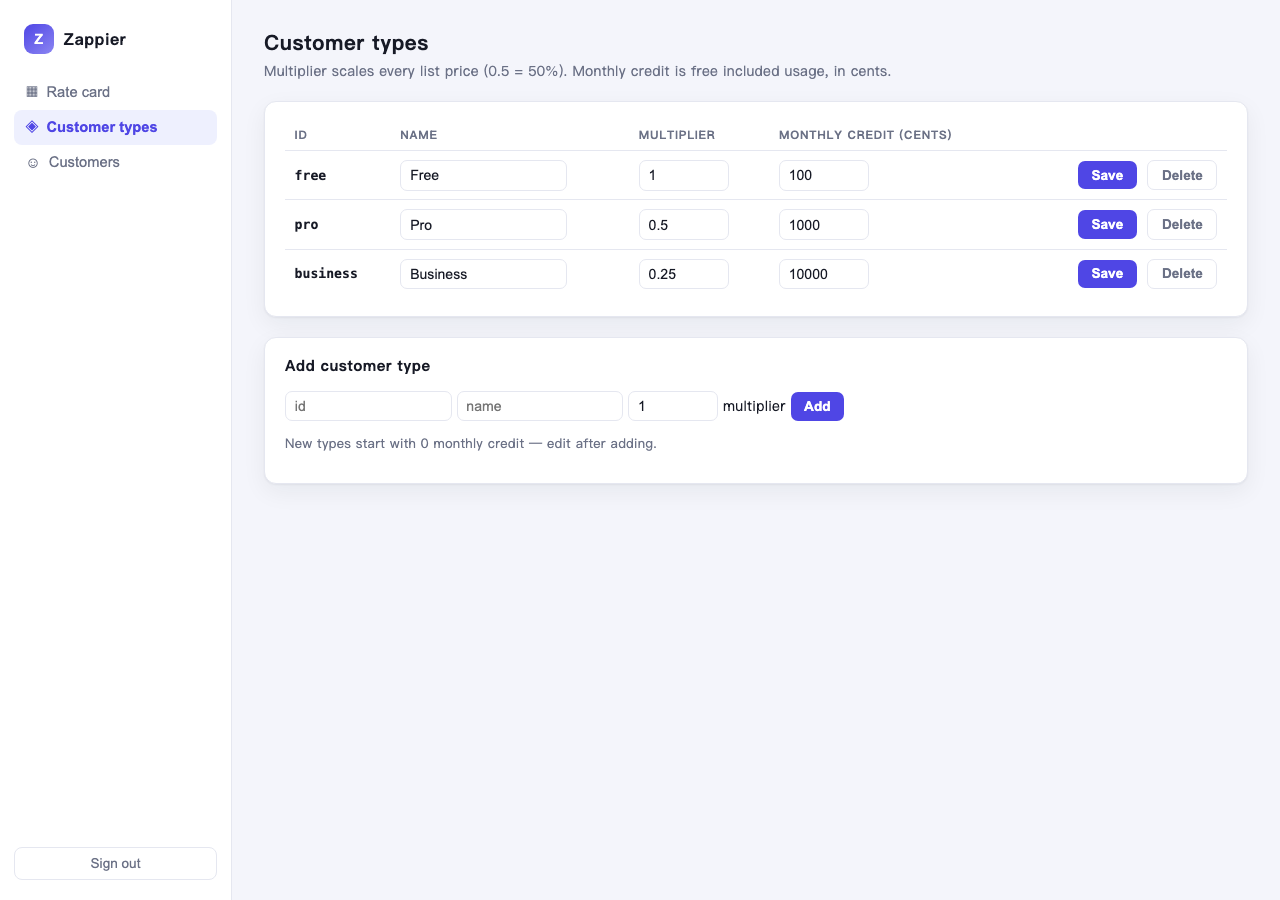

Step 5 — Customer types

Click Customer types in the sidebar. Each type is a pricing tier: a multiplier applied to every list price and a monthly credit of free included usage (cents).

Customer types

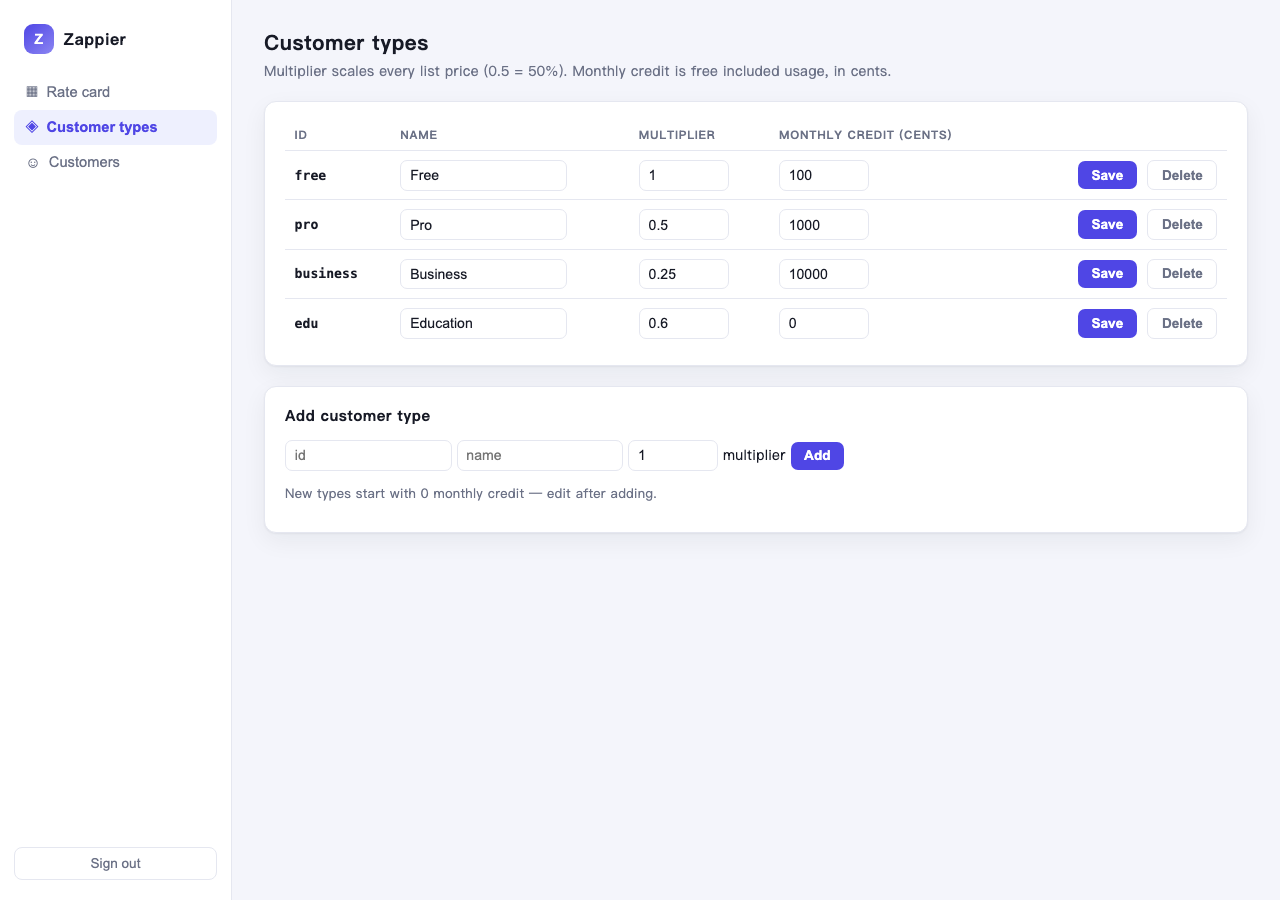

Step 6 — Add a customer type

Fill the Add customer type form — here edu / Education / ×0.6 — and click Add. The new type appears immediately and can be assigned to customers.

Add customer type

New types start with 0 monthly credit — edit the row and Save to grant one.

Step 7 — Customers

Click Customers in the sidebar. This is where accounts live: their type, and an optional multiplier override for per-customer deals (blank = inherit from type).

Customers

Step 8 — Create a customer and copy the API key

Enter a name, pick a type, click Create. The API key appears once in the notification at the bottom-right — copy it and send it to the customer; it is never shown again.

API key shown once

The new customer appears in the table right away:

Customer created

Step 9 — Explore the interactive API docs

Open http://localhost:3000/docs — full Swagger docs with a "Try it out" console. Click Authorize and paste a customer API key to make live calls from the browser.

API docs

Step 10 — Make an API call

Call the API with a customer key. Every priced response includes its quote, so the cost of every call is transparent:

API call with quote

Note how the quote reflects the walkthrough itself: the 6¢ price set in step 4, halved to 3¢ by Grace's Pro multiplier.

Step 11 — Check usage and credits

Customers can check their own month-to-date usage anytime:

Usage summary

includedCents is covered by the type's monthly credit; billableCents is what the daily billing job would report to Stripe right now.

Where to go next
